DESCRIPTION

Basic Info

Model NO.	FRTB-SD3-C
Power	1.5kw
Specification of Cap	20-50mm

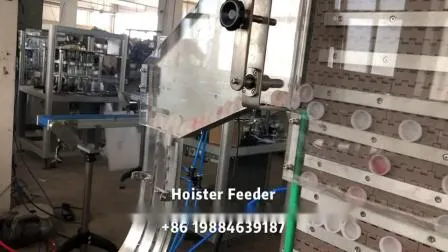

Feeder Type	Hoister Feeder, Vibrator Feeder
Electrical Control System	Variable Frequency Control
Machine Material	Stainless Steel
Transport Package	Wooden Box
Specification	3000× 1000× 2200MM
Trademark	FURI
Origin	China
HS Code	8422303090
Production Capacity	10sets/Month

Product Description

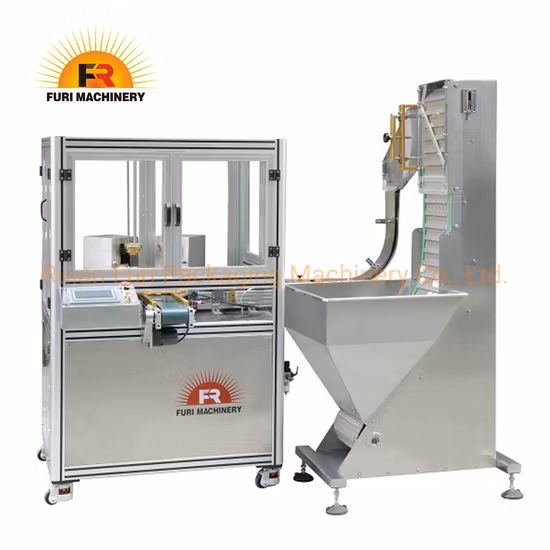

FRTB-SD3-C Fully Automatic Cap Lining Inserting Machine



1. Scope of Application:
This machine is widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chmeicals, Package, etc. It is an ideal inserting machine.

2. Technical Parameters

Specification of cap(mm)	Max.productive capacity(Pec/min)	Power voltage(V)	Total power(Kw)	Extemal dimension(L×W×H)mm	Net weight(Kg)
φ20-50	120-160	220	1.5	3000×1000×2200	550

3. Structure of equipment:Automatic Cap Sorting Machanism:

It sorts the messy caps in orderand makes all cap mouth upwards.Cap Delivering Machanism:

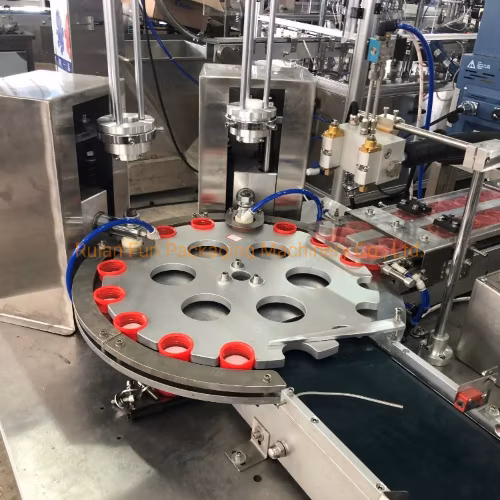

It delivers the ready bottle cap into theliner inserting machanism in order.Liner Inserting Machanism:

It inserts one piece of liner into the capto complete liner insering procedure.Glue Injection Machanism:

It injects hot melt glue into caps for sticking liner
4. Features:
1) This machine replaces the handwork. It automatically inserts the liner into the bottle cap, and can raise work efficiency greatly.2) Reasonable Liner Sealing, Fast speed, High efficiency, Safe and Sanitary product.3) This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and it can omit the sterilizing technics.4) Sorting Cap System attaches the function of cap elimination, in order to make sure every finished bottle cap upward.5) It has automatic counter inside, and can greatly raise the working efficiency afterwards.6) It delivers the bottle cap by driving convey with accurate position. This machanism can put the messy bottle caps in the vibrating loading tray in order, and load them into the guide rail. The turnplate positions the caps and then it delivers to glue caps one by one automatically. Finally it automatically delivers to the outleting dipper.7) It adopts mechanical drive deliver position machanism to make the machine operate smoothly. It is suitable for various specifiations of bottle caps and aluminum foil.8) It adopts PLC controller, and has the alarm while out of liner and bottle cap. The electric control system adopts frequency conversion techniques. It has the advantages of free setting, wide application, easy operation, stable working, convenient cleaning and maintenance, durable in use, etc.9) Our fully automatic packing machine is in strict accordance with National GMP Standard and process requirements.
